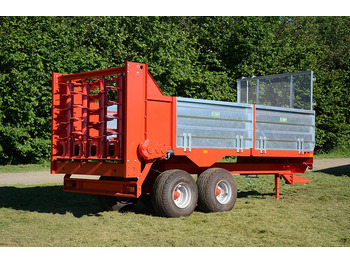

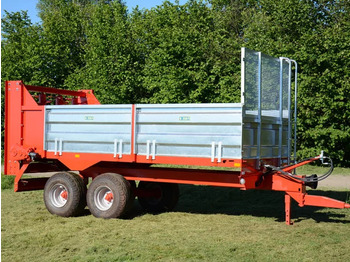

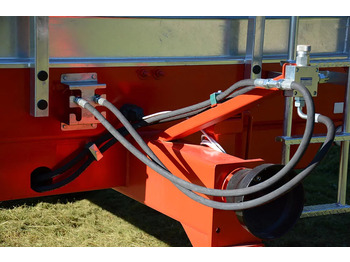

Leasing para Roltrans N250/4 HELIOS

Technical specifications

Payload 8000 kg

Weight 3150 kg*

Permissible total weight 11150 kg

Cargo area 8.5 m2

Cargo box capacity 6.8 m3

Four-drum vertical adapter

Dimensions 6400/2430/2750 mm (L/W/H)

Dimensions inside the cargo box 4300/1970/800 mm (L/W/H).

Floor height from the ground 1200 mm

Wheel base 1600 mm

Permissible load per coupling device up to 2500 kg

Suspension tandem springs or wishbones

Tire size 400/60 - 15.5

Speed 25 km/h

Minimum engine power 80 hp

PTO speed 540 rpm

Spreading width 8 m

Standard equipment

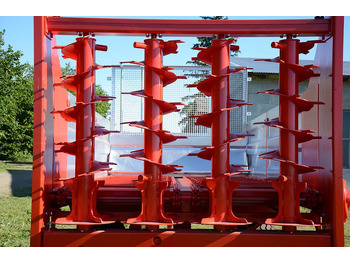

four-drum vertical adapter

tandem type wishbone suspension for a stable and smooth ride

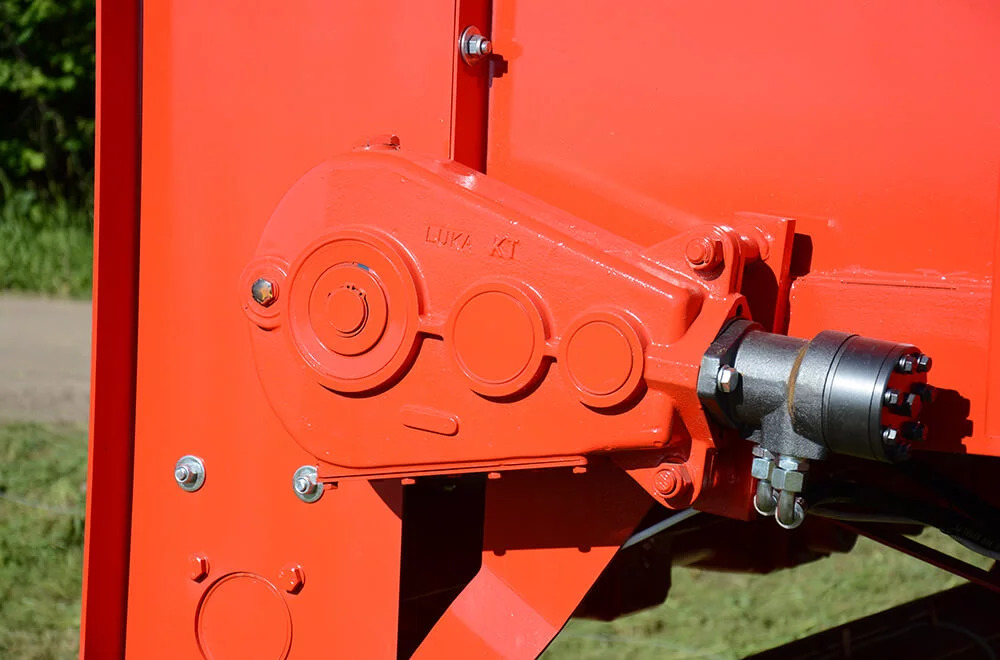

hydraulic floor conveyor drive with stepless adjustment

four-chain floor conveyor with 11 mm link and interchangeable slats

pneumatic braking system with one or two lines (to be agreed with the customer)

hot-dip galvanized sideboards

hot-dip galvanized ladder with anti-slip steps

other elements of the spreader shot-blasted before painting

rigid drawbar with eye of 50 mm diameter, adapted to cooperate with the tractor lower hitch

drawbar support

wheels with tires 400/60-15.5

protective net mounted on the front side

12 V lighting system

Optional equipment

EU homologation

hydraulic brake system

hydraulically raised rear wall

four-chain floor conveyor with 14 mm link

hydraulic distributor for tractors with two hydraulic sockets

tandem type sprung suspension for a stable and smooth ride

rigid drawbar with an interchangeable eye of 40 mm diameter, adapted for cooperation with the tractor's upper hitch

frame made of channel iron 160 mm

wheels with 500/50-17 tires

loose spare wheel

deflectors

Standard PTO for connection to the tractor

wide angle PTO for coupling to the tractor
