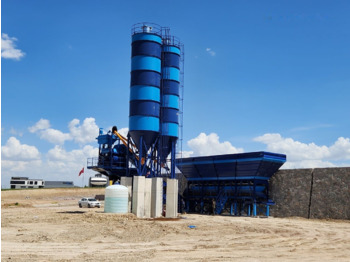

Planta de hormigón nuevo Polygonmach PMC-120 Mobile Batching Plant Self Erecting No Crane Necessity

UNITS

AGGREGATE STORAGE HOPPER – 4 x 30 m3 1

AGGREGATE WEIGHING BELT CONVEYOR 1000x13000mm 1

AGGREGATE TRANSFER CONVEYOR – 1000 x 11.000 mm 1

TWIN SHAFT MIXER WITH LUBRICATION SYSTEM – 3 m3 1

CEMENT WEIGHING HOPPER - 1500 kg 1

WATER WEIGHING HOPPER – 1000 lt 1

ADDITIVE WEIGHING HOPPER – 50 lt 1

AIR COMPRESSOR – 800 lt 1

CONTROL CABINET WITH AIR CONDITIONER 1

CONTROL PANEL, PC AND PLOTTER, POWER PANEL 1

MOBILE CHASSIS -DOUBLE 1

GENERAL FEATURES OF THE PLANT

Plant Capacity : 120-135 m3/h

Control Type : Full Automatic

Mixer : 4500/3000 Twin shaft Mixer, 3 m3 wet concrete capacity.

Weight of the plant : 45 Tons without cement silo.

Plant Sizes : 16.5 (L) x 2.8 (W) x 4.2 (H) metersx2

Total Motor Power : 215 kW Screw conveyors including .

Voltage / Frequency : 380 V / 50 Hz

Required area for installation : 300 m2 (excluding storage areas, truck park area and administrative building)

No of operator to work the plant : 1

Painting : 1 layer of anticorrosive paint, 2 layers of FINAL COAT EPOXY PAINT , total paint thickness : 140 microns

Number of trucks for transport : 1 pcs Head-Truck w+ 2 pcs Tented Truck

PLANT DETAIL

BRAND POLYGON

MODEL POLYGON PMC120 CONCRETE PLANT

PLANT MODEL CONCRETE PLANT WITH TWINSHAFT MIXER

PLANT CAPACITY Fresh Concrete 120 m3/Hour

AGGREGATE BUNKER CAPACİTY 4x30= 120 M³

CEMENT WEIGHT CAPACITY 1500 kg

WATER WEIGHT CAPACITY 1000 kg

MIXER CAPACITY

4500-3000 LT TWINSHAFT MIXER( PMX 3000)

TOTAL ENGİNE POWER 215 Kw

NUMBER OF MIXER ENGINES 55x2 kw GAMAK

VOLTAGE 380V - 50 Hz

1.9 MIXER TECHNICAL SPECIFICATION

Feature Value/Unit Capacity

Loading Capacity m3/h 3

Fresh Concrete Capacity m3 3

Capacity Lt 4500

Gearbox /Engine KW 55x2 ERMAKSAN/GAMAK 1500 rpm/m

Sıde wears mm 8 HARDOX

Mixer Body Wear m3 10 HARDOX

Number Of Scraper pcs 4

Number Of Mixing Arms pcs 14

Scraper and Mıxıng Pallets mm 32 mm NI-HARD-4

Engine Power Kw 110

Water Distributer Available

Pneumatic Discgarge Cover Kw Available

Maintenance and Safety Valve Available

Emergency Button Available

Mixer Cover System Hydraulic

Cover Open/Close Sensor Available
